DNA IN-EAR BELTPACK RECEIVER

  • DNA IN-EAR BELTPACK RECEIVER

    Technical specifications:
    Type: monaural system
    Modulation: Π/4 - DQPSK
    Frequency range: 518-542 MHz, 2x100/4x50CH
    Sampling rate: 48 kHz
    Data rate: 204,8 kbps
    Dynamic range: >90 dB
    Total Harmonic Distortion: <0.1%
    Audio transmission delay: <3 ms
    Sound to noise ratio: >96dB
    Frequency response: 30 ~ 20 kHz
    RX sensitivity: < -94dBm

    Manufacturer
    DNA

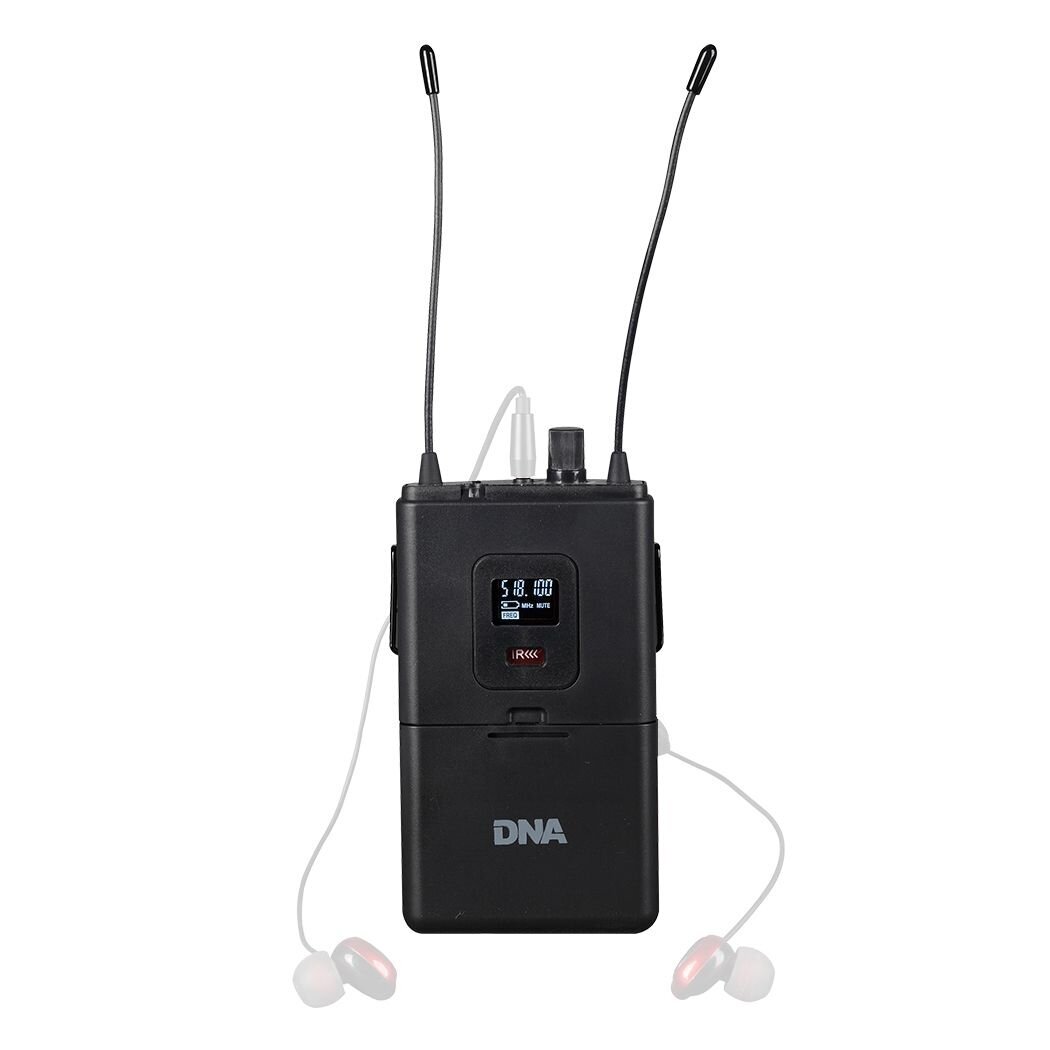

  • "The DNA IN-EAR BELTPACK is a high quality monaural clipping receiver for DNA IN-EAR wireless headphone listening. It features an easy-to-read LCD display and an IR (infrared sensor) port to synchronise the output signal with the receiver. The top of the housing has a rotary power and volume potentiometer, a power level indicator, a headphone socket and two antennas to collect the signal from the transmitter. The Beltpack is powered by two AA batteries, which allow the receiver to operate intensively for up to 8 hours!

    DNA IN-EAR is a professional monitor system that is especially appreciated by musicians and vocalists, wedding bands, event companies and DJs. This kit eliminates the need for large listening speakers and cumbersome cables. It is also perfect for spaces where space is at a premium. It is easy to use and very ergonomic.
